Sequencing Informatics
Next Generation DNA Sequencing Resources
Dr. Stratos Efstathiadis
efstra1os.efstathiadis@nyumc.org
Technical Director
High Performance Computing Facility
Center for Health Informatics and Bioinformatics
NYULMC
efstra1os.efstathiadis@nyumc.org
Technical Director
High Performance Computing Facility
Center for Health Informatics and Bioinformatics
NYULMC
-
One definition of bioinformatics is:
“The use of computers to analyze biological problems.” - As biological data sets have grown larger and biological problems have become more complex, therequirements for computing power have also grown.
- Computers that can provide this power generally use the Unix operating system ‐ so you must learn Unix
- Most NGS bioinformatics work requires access to a more powerful computer than your desktop/laptop.
- This might be a server in your lab, central server for your University, or a rented Cloud server such as the Amazon Elastic Compute Cloud (EC2)
- Typically, a Terminal program is used to communicate with the remote server
- Macintosh computers have a nice built in Terminal program (in the Utilities folder)
-
Windows users should install PUTTY
http://www.chiark.greenend.org.uk/~sgtatham/putty/
- Secure Shell: A set of tools that allow secure interaction with
- remote servers (ssh, sshd, ssh‐add, ssh‐keygen, ssh‐ agent, etc.) using two‐factor authentication, based on
- What you know (a pass phrase)
- What you have (a key created and stored on your local computer)
- ssh is the de‐facto remote login mechanism in Linux/Unix.
- rlogin, rsh, telnet, etc. use insecure protocols (transmit clear text passwords)
- Unix commands are short and cryptic like vi or rm.
- Computer geeks like it that way; you will get used to it.
- The command is not executed until you hit the Enter/Return key
- use the arrow and delete keys to edit commands
- Every command has a host of modifiers which are generally single letters preceded by a hyphen: ls ‐l or mv ‐R
- Unix is cAsE SenSITIve! Capital letters have different functions than lower case letters, often completely unrelated.
-
A command also generally requires an argument, meaning some file on which it will act:
cat ‐n mygene.seq
-
bash‐3.2$ date
Wed Jan 2 13:28:49 EST 2013 -
bash‐3.2$ pwd (Present Working Directory)
/home/username - bash‐3.2$ touch myfile (create a new file)
-
bash‐3.2$ ls (list files)
myfile
-

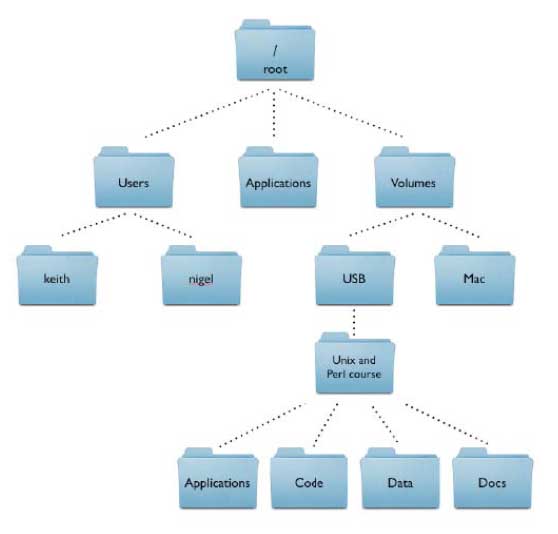

Directories are a means of organizing your files on a Unix computer.
– They are equivalent to folders on Windows and Macintosh computers - Directories contain files, executable programs, and sub‐directories
- Understanding how to use directories is crucial to manipulating your files on a Unix system.
[image from: Keith Bradnam & Ian Korf, Unix and Perl Primer for Biologists]
- When you login to the server, you always start in your Home directory.
- Create sub‐directories to store specific projects or groups of information, just as you would place folders in a filing cabinet.
- Do not accumulate thousands of files with cryptic names in your Home directory
-
This is a minimal list of Unix commands that you must know for file management:
- ls (list)
- mkdir (make directory)
- cd (change directory)
- rmdir (remove directory)
- cp (copy)
- pwd (present working directory)
- mv (move)
- more (view by page)
- rm (remove)
- cat (view entire file on screen)
- All of these commands can be modified with many options. Learn to use Unix ‘man’pages for more information
- There are some important shortcuts in Unix for specifying directories and files
- . (dot) means “the current directory”
- .. means “the parent directory” ‐ the directory one level above the current directory, so cd .. will move you up one level
-
~ (tilde) means your Home directory, so cd ~ will move you back to your Home.
–
Just typing a plain cd will also bring you back to your home directory - * (asterix) is a wildcard, which can substitute for any number of letter or number characters in a filename
- –the tab key can be used to auto‐complete long file names
-
[up arrow] —the up arrow key brings back past commands that you have typed –which can be edited and resubmitted
-
cp lets you copy a file from any directory to any other directory, or create a copy of a file with a new name in one directory
- cp filename.ext newfilename.ext
- cp filename.ext subdir/newname.ext
- cp /u/jdoe01/filename.ext ./subdir/newfilename.ext
-
mv allows you to move files to other directories, but it is also used to rename files.
-
Filename and directory syntax for mv is exactly the same as for the cp command.
-
mv filename.ext subdir/newfilename.ext
-
NOTE: When you use mv to move a file into another directory, the current file is deleted.
-
Filename and directory syntax for mv is exactly the same as for the cp command.
- Use the command rm (remove) to delete files
-
There is no way to undo this command!!!
- We have set the server to ask if you really want to remove each file before it is deleted.
-
You must answer “Y” or else the file is not deleted.
> ls
af151074.gb_pr5 test.seq
> rm test.seq
rm: remove test.seq? y
> ls
af151074.gb_pr5
- Most bioinformatics work involves text files: sequence data, software, scripts, configuration files, analysis results
- To read, write, and edit these text files you must get familiar with a Text Editor program
-
for this tutorial, use the emacs editor
- it is pre‐installed on all Linux systems
- fairly easy to learn/use
- has some power features (copy/paste, search)
‐bash‐3.2$ mkdir project1 (Make Directory)
‐bash‐3.2$ cd project1 (Change Directory)
‐bash‐3.2$ pwd
/home/efstae01/project1
‐bash‐3.2$ cp /data/tutorial/chr19.fastq .
‐bash‐3.2$ ls –la
‐bash‐3.2$ head chr19.fastq
@HWUSI‐EAS610_0001:3:1:4:1405#0/1
GATAGTTCAATTCCAGAGATCAGAGAGAGGTGAGTG
+
B;30;<4@7/5@=?5?7?1>A2?0<6?<<80>79##
@HWUSI‐EAS610_0001:3:1:5:1490#0/1
GGGCTGGTGGAGTGATCCCAAGGGGTGGGGATGGGG
+
B@A?AAA1BB;A5B44>AA3’@AB>+>@AB94A?A?
@HWUSI‐EAS610_0001:3:1:6:388#0/1
CAGAGTTCATGAAATAGGCCTCTAGTCTTCCTAGAC
‐bash‐3.2$ cd project1 (Change Directory)
‐bash‐3.2$ pwd
/home/efstae01/project1
‐bash‐3.2$ cp /data/tutorial/chr19.fastq .
‐bash‐3.2$ ls –la
‐bash‐3.2$ head chr19.fastq
@HWUSI‐EAS610_0001:3:1:4:1405#0/1
GATAGTTCAATTCCAGAGATCAGAGAGAGGTGAGTG
+
B;30;<4@7/5@=?5?7?1>A2?0<6?<<80>79##
@HWUSI‐EAS610_0001:3:1:5:1490#0/1
GGGCTGGTGGAGTGATCCCAAGGGGTGGGGATGGGG
+
B@A?AAA1BB;A5B44>AA3’@AB>+>@AB94A?A?
@HWUSI‐EAS610_0001:3:1:6:388#0/1
CAGAGTTCATGAAATAGGCCTCTAGTCTTCCTAGAC
- To start emacs, at the command prompt, just type: emacs
-
To use Emacs to edit a file, type:
emacs filename
(where filename is the name of your file) - When emacs is launched, it opens either a blank text window or a window containing the text of an existing file.
-
You can delete or move blocks of text.
- First move the cursor to the beginning (or end) of the block of text.
- Then set a mark with: Ctrl‐spacebar
- Now move to the other end of the block of text and Delete or Copy the block:
- Delete: Ctrl‐w
- Copy: [Esc] w
- To Paste a copied block, move to the new location and insert with : Ctrl‐y
-
To save a file as you are working on it, type:
Ctrl‐x »Ctrl‐s -
To exit emacs and return to the Unix shell, type: Ctrl ‐x »Ctrl ‐c
If you have made any changes to the file, Emacs will ask you if you want to save:
Save file /u/browns02/nrdc.msf? (y,n,!,.,q,C-r or C-h)- Type “y”to save your changes and exit
- If you type “n”, then it will ask again:
-
Modified buffers exist; exit anyway? (yes or no)
- If you answer “no”, then it will return you to the file, you must answer “yes”to exit without saving changes
-
Emacs has a built in help feature
- Just type: Ctrl‐h
-
To get help with a specific command, type: Ctrl‐h k keys
(where “keys” are the command keys that you type for that command)
- Emacs has a built in tutorial: Ctrl‐h t
-
this will be an exercise for this week’s computer lab.
- This tutorial is just a minimal beginning for the basic computing skills needed for NGS bioinformatics
-
To get help with a specific command, type: Ctrl‐h k keys
(where “keys” are the command keys that you type for that command) -
An excellent and much more detailed tutorial is available free online:
Unix and Perl Primer for Biologists by Keith Bradnam & Ian Korf,
http://korflab.ucdavis.edu/Unix_and_Perl unix_and_perl_v3.1.1.html
